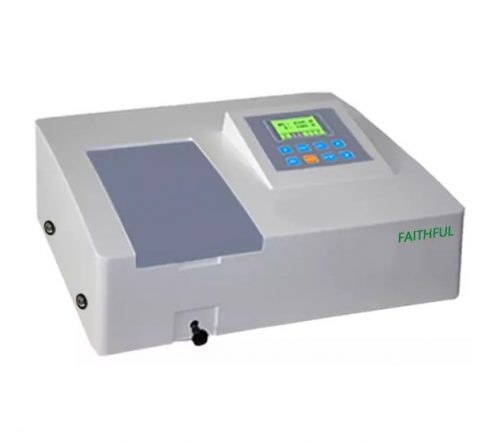

Single beam UV/VIS spectrophotometer
0.00৳
#Single beam UV VIS spectrophotometer
Features:
- Large LCD screen (128*64 Dots)with saving standard curvr function
- Imported & Environmental Deuterium lamp, preventing from Ozone inhalation
- Adopted high-class grating with wholly heremetic light path design, to ensure the instrument has the super low stray light.
- Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
- Pre-aligned design ensures the user can change lamps conveniently.
- Wavelength calibration, wavelength setting, change lamp conveniently.
- With SiO2 coating optical mirror, reducing the pollution from outside fully
- Optional PC Software to expand the applications to Quantitative, Multi-Wavelength and Kinetics.
- Widely used for Organic chemistry, Inorganic chemistry, Life sciences, foods, Medicine and health ,Agriculture, Geology, Metallurgy and Environment etc. fields.
Specification
| Model |
FUV-1000 |
FV-1000 | FUV-1200 |
FV-1200 |
|
Optical System |
Single Beam, Grating 1200 lines/mm |
|||
| Wavelength Range | 200-1020nm | 325-1000nm | 200-1020nm | 320-1020nm |
| Spectral Bandwidth | 4nm | |||
| Wavelength Accuracy |
±1.8nm |
±1.0nm |
||
| Wavelength Repeatability | ≤0.5nm | |||
| Photometric Accuracy | ±0.002A(0-0.5Abs), ±0.004A(0.5-1.0Abs), ±0.5%T(0-100% T) |
|||
| Photometric Repeatability | 0.001Abs(0-0.5Abs), 0.002Abs(0.5-1.0Abs), ≤0.2%T（0-100% T） |
|||
| Stray Light | ≤0.002%T@360nm; 220nm (220nm for UV only) |
|||
| Stability | ±0.002A/h@500nm | |||
| Noise | 0.001A | |||
| Display | 128*64 Dots LCD | |||
| Photometric Mode | T,A,C,E | |||
| Photometric Range | 0-200% T,-0.301-3.0A | |||
| Detector | Silicon Photodiode | |||
| Light Source | Deuterium Lamp, Tungsten Lamp | |||
| Input | Membrane Keypad | |||
| Output | USB-A,USB-B | |||
| Compartment | Optional Solid Sample Holder, Micro Cell Holder, 100-100mm Cell Holder |
|||
| Visit us | www.elitetradebd.com | |||
