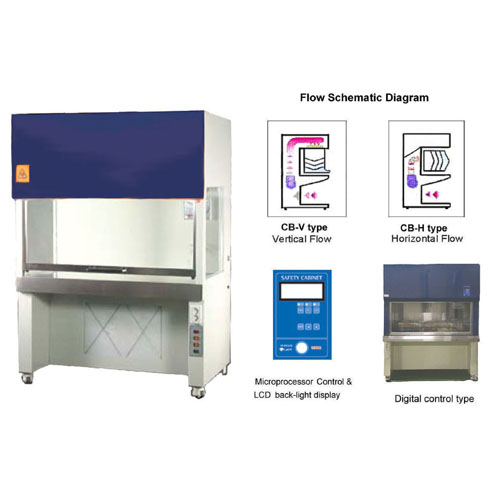

Laminar Air Flow Cabinet, CB-V & CB-H Series, ESMC, Humanlab, Korea
0.00৳
Laminar Air Flow Cabinet, Class II, CB-V & CB-H Series, Humanlab, Korea
Features
- These safety cabinet are all steel with welded, unitized construction of
- main frame and 304 SS of interior
- Air inlet and outlet utilize HEFA filter 99.97% efficient on 0.3um particles
- The negative pressure plenum design provides complete personal protection
- with Class 100(ISO Class 5) air
- Service fixture enable to connection air, gas, water, electric or vacuum source
- Also included FL lighting and UV lamp for work area decontamination
Specifications
| Model | CB-90-V | CB-120-V | CB-150-V | CB-180-V | ||
| Model | CB-90-H | CB-120-H | CB-150-H | CB-180-H | ||
| Working Area WxBxH-mm | 900x630x630 | 1200x630x630 | 1500x630x630 | 1800x630x630 | ||
| Air Flow Direction | V: Vertical Flow/H: Horizontal Flow | |||||
| Clearness Class | Class II/Clearness 100 | |||||
| Mail Filter | HEPA 99.97% efficiency 0.3µm particle | |||||
| Air Flow | 980m3/Hr | 1300m3/Hr | 1700m3/Hr | 2030m3/Hr | ||
| Air Velocity | Inflow: 0.6͠0.7m/sec; Down: 0.3͠0.5m/sec. Adjustable | |||||
| Sterilizing | 2xUV 30W | 2xUV 40W | 2xUV 40W | 2xUV 40W | ||
| Illumination | 2xFL 30W | 2xFL 40W | 2xFL 40W | 2xFL 40W | ||
| Blower | Centrifugal high efficiency fan with speed control | |||||
| Noise Level | 55-60dBA | |||||
| Control & Display | Analog manometer & push button | |||||
| Material | Case | Stainless Steel interior & Steel Plate with epoxy coated exterior | ||||
| Door | Tempered safety glass with sliding door | |||||
| Work Table | Stainless steel | |||||
| Utility Device | Gas. Air/Water Cork, 2xElectric receptacle | |||||
| Power Source | 220VAC,50/60Hz | |||||
| Overall
(WxDxH)mm |
CB-V Type | 1020x840x1800 | 1320x840x1830 | 1620x840x1830 | 1960x840x1830 | |
| CB-H Type | 1060x990x830 | 1360x990x1830 | 1660x990x1830 | 1960x990x1830 | ||
| Weight (Kg) | 230 | 250 | 270 | 290 | ||
Options:
|
||||||
Images are reference only. Actual product may be different.
