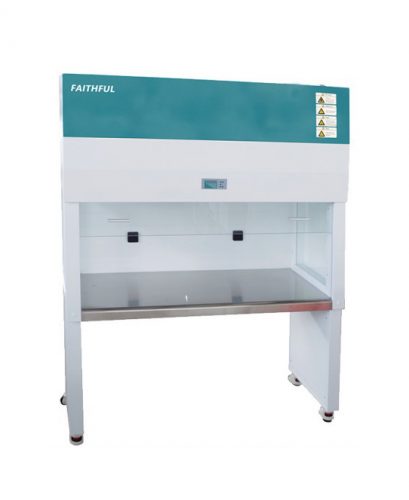

Vertical laminar flow cabinet
0.00৳
#Laminar flow cabinet vertical type #Vertical laminar flow cabinet
Vertical flow, airflow direction in the work space down from top to bottom.
Description
- Vertical laminar flow, with SUS 304 stainless steel bench board, effectively prevents external air into the cleaning work environment.
- Centrifuge fan, stable speed, low noise, lightly touch air volume control system, five-stage speed control, speed adjustable from 0.2-0.6m/s(initial 0.6m/s, final 0.2m/s)
- High quality non-separator HEPA filter, good purification effect.
Specification
| Model | CJ-1D | CJ-1S | CJ-2D | CJ-2S | |
| Applicable Station | one person one side |
one operator two sides |
two persons one side |
two operators two sides |
|
| Airflow Direction | Vertical | ||||
| Function | Cleanliness | Class 100 | |||
| Collection Efficiency | ≥99.995% of 0.3um particle | ||||
| Colony Count | ≤0.5/vessel (petri dish is φ90mm ) | ||||
| Wind Speed | initial:0.6（m/s）,final：0.2 （m/s） | ||||
| Wind Speed Range | 0.2-0.6 （m/s） | ||||
| Noise Level | ≤62db | ||||
| Vibration Semi Peak Value | ≤3um | ||||
| Illumination Intensity | ≥500LX（Activity Center） | ||||
| Work Surface Bearing | 50kg | ||||
| Composition | Inner Chamber | SUS304 Stainless steel plate | |||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||
| Operation door | Tempered Glass | ||||
| HEPA Filter mm | 900*500*50 one piece | 900*550*50 one piece | 1300*500*50 one piece | 1300*550*50 one piece | |
| Pre-Filter mm | 464*360*5 one piece | 712*360*5 one piece | |||
| Fluorescent Lamp | 16W*2 | 24W*2 | |||
| UV Lamp | 20W*1 | 30W*1 | |||
| Top Fan | 180W one piece | 180W two pieces | |||
| Rated power | 240W | 440W | |||
| Controller | Display | LED | |||
| Wind Speed Control | Intelligent multi-level adjustable | ||||
| Additional Function | Build in 2 multi-purpose sockets, high -efficiency filter ,sterilization lamp replacement prompt , foot level adjustment , lighting sterilization one key on/off |
||||
| Specification | Inner Size (W*L*H) (mm) |
920*580*550 | 920*630*550 | 1320*580*550 | 1320*630*550 |
| Exterior Size (W*L*H) (mm) |
1060*653*1734 | 1060*703*1734 | 1460*653*1734 | 1460*703*1734 | |
| Packing Size (W*L*H) (mm) |
1210*775*1899 | 1210*825*1899 | 1610*775*1899 | 1610*825*1899 | |
| Max Power of universal socket | Single socket: 800W | ||||
| Current Rating | AC220V/1.8A 50/60Hz | AC220V/3.6A 50/60Hz | |||
| NW/GW kg | 160/220 | 165/205 | 200/250 | 205/255 | |
