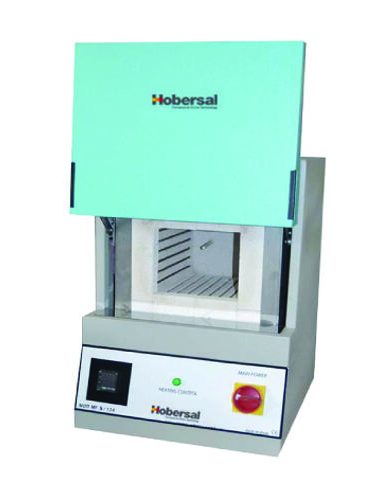

Muffle furnace, 1300ºC

1300ºC Muffle furnace 6L, Hobersal, Spain

• Door type: Vertical lift door
  Model: MF6-134
  Brand: Hobersal, Spain
• Supplier in Bangladesh- Elite Scientific & Meditech Co
• Web address- www.elitetradebd.com
  Specification
  Maximum temperature: 1300 ºC
  Maximum work temperature limited time 1250 ºC
  Continuous work temperature 1200 ºC
  Insulation specifications
  Low density ceramic bricks and ceramic fiber
  FURNACE INNER DIMENSIONS (mm) 6 liters
  Thermocouple Type: S
  Heating zones: 4
  Heating elements type: Kanthal AF
  Stability: 1 +-ºC
  Homogeneity: 5 +ºC
  Dimension (inner): H150xW150xD250 [mm]
  Dimension (ourer): H660xW430xD510 [mm]
  Control System: Digital Single Set Point
  Power adjustment: SSR
  Power: 4-5Kw; Hertz: 50-60 Hz; Voltage: 220 V II

OPTIONS: Security [Extra cost] if required]

• Security Class II: Digital single set point
• Security Class II: Digital single set point + additional Thermocouple

ACCESSORIES [Extra cost] if required

SPARE PARTS (Wear and Tear Material)

Heating elements

• Thermocouple type K (HD)
• Smoke extraction chimney
• Forced smoke extraction chimney
• Ramp programmer 1 prog. 8 steps
• Inconel bottom tray (metal I-300, with edge)
• Gas inlet on rear
• Crucible tongs 450mm SS
• Porcelain Crucible 60ml 1000ºC
• Alumina Crucible 99,7% 1700ºC
