Analogue Trainer ETW 3600
16,000.00৳
Analogue Trainer ETW 3600

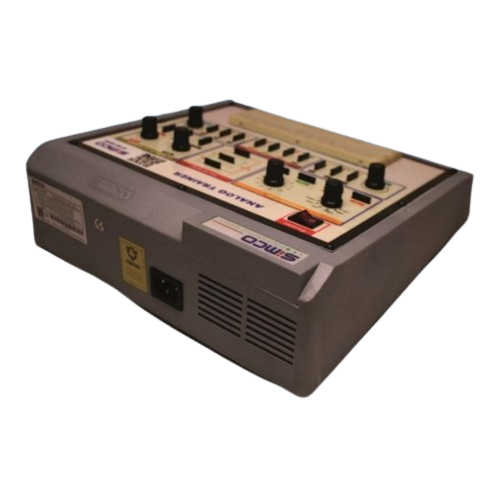

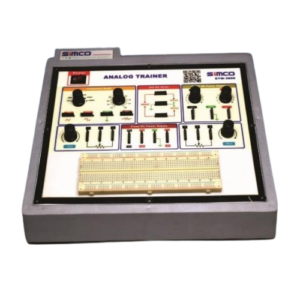

- Name: Analogue Trainer Board with Function Generator (0.1 Hz to 100 KHz)
- Model: ETW 3600
- Brand: SIMCO
- Origin: Bangladesh
This device is used to measure parameters of an analogue output signal.
The ETW-3600 analog circuit laboratory is a comprehensive and self-contained system suitable for tuition and experimentation with a range of analog electronics circuits. All necessary equipments such as power supply & signal generator.
Analogue Trainer ETW 3600
- Name: Analogue Trainer Board with Function Generator (0.1 Hz to 100 KHz)
- Model: ETW 3600
- Brand: SIMCO
- Origin: Bangladesh
SPECIFICATION
REGULATED DC POWER SUPPLY
Positive Supply Output:
- + 0.2 volts to + 15 volts
- Load Regulation: 2% no load to full load
- Current: 2A (max.) for all voltages
Negative Supply Output: - 0.2 volts to - 15 volts
- Load Regulation: 2% no load to full load
- Current: 2A (max.) for all voltages
Fixed DC POWER SUPPLIES
- Output voltages: + 12 volts (positive)
- - 12 volts (negative)
- + 5 volts (positive)
- Current: 1A (max.) for all voltages.
- All DC power supplies equipped with short-circuit protection.
50Hz Sine Wave Output
- Volts: 15-0-15 Volts rms 50 Hz.
- Current: 1A max.
Function Generator
Frequency range
- 1Hz-20Hz
- 20Hz-200Hz
- 200Hz-2 kHz
- 2 kHz-20 kHz
- 20 kHz-200 kHz
Amplitude
- Sine wave output:0-10Vpp variable
- Triangle wave output: 5Vpp Fixed
- Square wave output: 5Vpp Fixed
Potention Meters
- Variable resistor VR1: 1kΩ
- Variable resistor VR2: 100kΩ
SOLDER LESS BREADBOARD
Interconnected nickel plated 840 tie points, fitting all DIP sizes and all components with lead and solid wire AWG # 22-30 (0.3 - 0.8 mm). To test, Place any circuits or components on the solder les breadboard & note down the ampere (Current) & volt (voltage) readings on a multi meter by varying the parameters furnished by the switches on the trainer board surface.
ACCESSORIES
- Power cable 1 (one)
- A set of pin-to-pin Connector 10 pcs (ten)
- Manual in English
Images are reference only. Actual product may be different.
